DECATUR INDUSTRIES INC.
C567
Fitting>Screw & Nut > C567
C567
C567 BOLT
C567 NUT
C567 WASHER

Material :
Zinc Die Cast Mirror Bolt
Size :
5/16”(M8) Thread
Finishes :
Available in various finishes

Material :
Zinc Die Cast Mirror Nut
Size :
5/16”(M8) Thread X 18mm L.
Finishes :
Available in various finishes

Material :
Steel Washer For Mirror Bolt
Size :
1/8” Thickness X 16mm O.D.
Finishes :
Available in various finishes


C730
Fitting>Screw & Nut > C730

Material :
Steel Invisible Working Top Connector
(Carriage Bolt)
Size :
M6 X 65mm L.
M6 X 150mm L.
Finishes :
Zinc Plated

C798
Fitting>Screw & Nut > C798

Material :

Steel Self-Dilling Screw

Size :

#12 (5mm) X 20/ 25/ 40/ 50/ 64/ 75mm L..



Hex Head /Plastic Washer

Finishes :

ZP/ YZP



C991
Fitting>Screw & Nut > C991

Material :

Zinc Die Cast Butterfly Screw

Thread size :

1/4”(M6) / 5/16”(M8)

Length :

3/4” / 1” / 1-1/4” / 1-1/2” / 1-3/4” /  2” L.

Finishes :

Available in various finishes

C990A
Fitting>Screw & Nut > C990A

Material :
Zinc Die Cast Butterfly Nut
Size :
3/16”(M5) Thread X 19 / 25mm L.
1/4”(M6) Thread X 21 / 25mm L.
5/16”(M8) Thread X 26mm L.
3/8”(M10) Thread X 29mm L.
Finishes :
ZP/YZP

C990B
Fitting>Screw & Nut > C990B

Material :
Zinc Die Cast Butterfly Nut
Size :
3/16”(M5) Thread X 19 / 25mm L.
1/4”(M6) Thread X 21 / 25mm L.
5/16”(M8) Thread X 26mm L.
3/8”(M10) Thread X 29mm L.
FinishES :
ZP/YZP

C733
Fitting>Screw & Nut > C733
Slot Type
Phillip/Slot

Material :

Zinc Die Cast Barrel Nut Slot

Size :

1/4”(M6) Thread X 10mm O.D. X 11mm L.

5/16”(M8) Thread X 12mm O.D. X 15mm L.

5/16”(M8) Thread X 12mm O.D. X 18mm L.

Finishes:

ZP/YZP



Material :

Zinc Die Cast Barrel Nut Phillip/Slot

Size :

3/8”(M5) Thread X 8mm O.D. X 10mm L.

1/4”(M6) Thread X 9.5mm O.D. X 13mm L.

1/4”(M6) Thread X 10mm O.D.X 13mm L.

1/4”(M6) Thread X 10mm O.D. X 14mm L.

1/4”(M6) Thread X 10mm O.D.X 16mm L.

1/4”(M6) Thread X 10mm O.D. X 20mm L.

Finishes:

ZP/YZP

C790A
Fitting>Screw & Nut > C790A

Material :
Zinc Die Cast Insert Nut Inner Hexagon, W/O Flange
(screw-in type)
Size :
3/16”(M5) Thread X 11mm L..
1/4”M6) Thread X 10mm L.
1/4”(M6) Thread X 13mm L.
1/4”M6) Thread X 15mm L.
1/4”(M6) Thread X 20mm L.
1/4”(M6) Thread X 25mm L.
5/16”(M8) Thread X 13mm L.
5/16”(M8) Thread X 20mm L.
5/16”(M8) Thread X 25mm L.
Finishes :
ZP/YZP

C790B
Fitting>Screw & Nut > C790B

Material :
Zinc Die Cast Insert Nut Inner Hexagon, W/Flange
(screw-in type)
Size :
1/4”(M6) Thread X 10mm L.
1/4”(M6) Thread X 13mm L.
1/4”(M6) Thread X 15mm L.
1/4”(M6) Thread X 20mm L.
1/4”(M6) Thread X 25mm L.
5/16”(M8) Thread X 13mm L.
5/16”(M8) Thread X 20mm L.
5/16”(M8) Thread X 25mm L.
3/8”(M10) Thread X 25mm L.
Finishes :
ZP/YZP

C792A
Fitting>Screw & Nut > C792A

Material :
Zinc Die Cast Insert Nut W/O Flange
(Knock-in or Press-in type)
Size :
5/32”(M4) Thread X 9mm L.
3/16”(M5) Thread X 7.5mm L.
3/16”(M5) Thread X 10mm L.
1/4”(M6) Thread X 11mm L.
1/4”(M6) Thread X 13mm L.
Finishes :
ZP/YZP

C792B
Fitting>Screw & Nut > C792B

Material :
Zinc Die Cast Insert Nut W/Flange
(Knock-in or Press-in type)
Size :
5/32”(M4) Thread X 10mm L.
1/4”(M6) Thread X 12mm L.
1/4”(M6) Thread X 15mm L.
5/16”(M8) Thread X 16mm L.
5/16”(M8) Thread X 23mm L.
Finishes :
ZP/YZP

C793
Fitting>Screw & Nut > C793

Material :
Zinc Die Cast Insert Nut End Close Type
( Knock-in or Press-in type)
Size :
1/4”(M6) Thread X 20mm L.
Finishes :
ZP/YZP

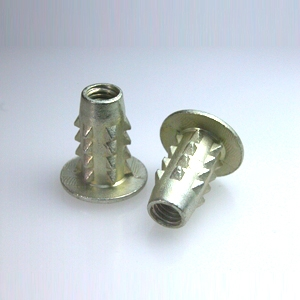

C795
Fitting>Screw & Nut > C795

Material :

Steel Tee Nut With 4 Prong

Size :

M4 x 8mm L.

M5 x 15mm L.

M6 X 18mm L.

M8 X 22mm L.

Finish :

Zinc plated and Yellow zinc plated
