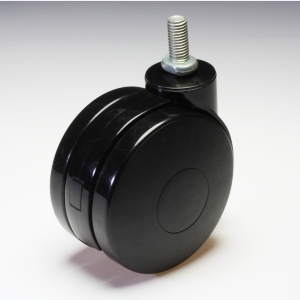

Twin Wheel Caster – With Hood & Brake

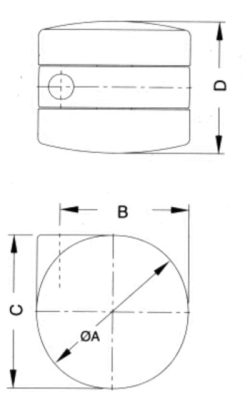

Item No. | Wheel material | Wheel (=A X D) (Dia. X W.) | Nylon Height (=C) | Load capacity |
C684-40 | Nylon | 40mmX41mm | 46mm | 35kgs |
C684-45 | Nylon | 45mmX40mm | 48.5mm | 45kgs |
C684-50 | Nylon | 50mmX46.5mm | 54.5mm | 50kgs |
C684-50H | Nylon | 50mmX48mm | 54.5mm | 60kgs |
C684-60 | Nylon | 60mmX52.5mm | 65.5mm | 70kgs |
Up Fittings: You can select any one from following group :
(A) Swivel Plate: 28X28, 32X32, 34X34, 38X38, 40X40mm or 42X42mm.
(B) Screw Stem: M6, M8 Thread or 5/16-18, 3/8-16 Thread.
(C) Socket Stem: 8X14mm, 8X25mm or 8X38mm is more popular that can match
nylon or metal socket.
(D) Friction Ring: 6X25mm, 8X28mm, 8X30mm or 11X22mm is more popular.
(E) Knock-in Stem: 8X20mm, 8X25mm that can match nylon socket.
(F) U Bracket: For 5/8” or 3/4” thick wood.
